Lamination machine-Water base glue

• Brief Introduction

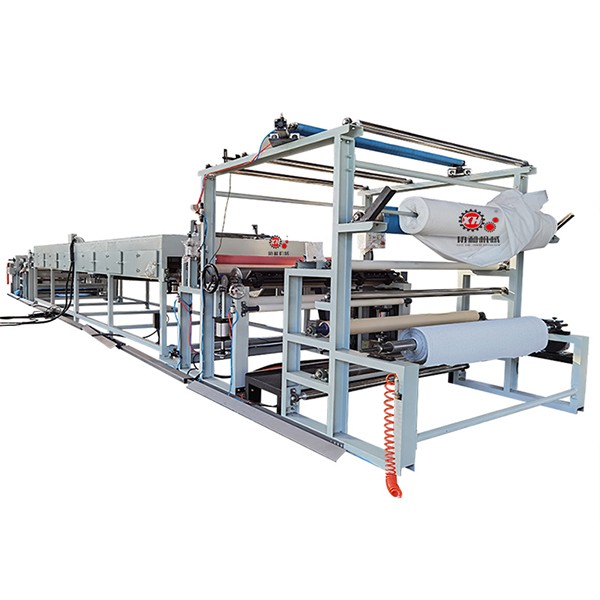

Xiehe Sandpaper lamination machine is designed to laminate Velcro or foam on coated abrasive full width web backing side.

Water-base or oil-based glue is used as the adhesive. When working, the glue is evenly applied to the back of the abrasive paper, then the velcro fabric bond with the glued sandpaper.After heating by far infrared drying tunnel, the two layers of materials are cured and integrated.

• Main technical parameter：

Max  web width：1650 [mm]

Designed mechanical speed: 1-25  [m/min]

Coating lamination speed: 5-15  [m/min]

Coating liquid:  solvent-based glue, water-soluble glue, solid content 50-60%

Base material：Sandpaper、velcro, PSA etc soft materials

Coating method：Roller coating

Glue spread quantities： Wet glue 20-50 [g/㎡]

Max unwinding dia of sandpaper：  φ600 [mm] (inner Dia:3'')

Max unwinding dia of velcro:            φ400 [mm] (inner Dia:3'')  - Can be customized

Max winding diameter：                   φ600 [mm] (inner Dia:3'')- Can be customized

Voltage：380V/440V±10%，50HZ，three phase- Can be customized

Size （L×W×H）： 11400*2400*2150mm

• Options:

Printing device

Slitting device
