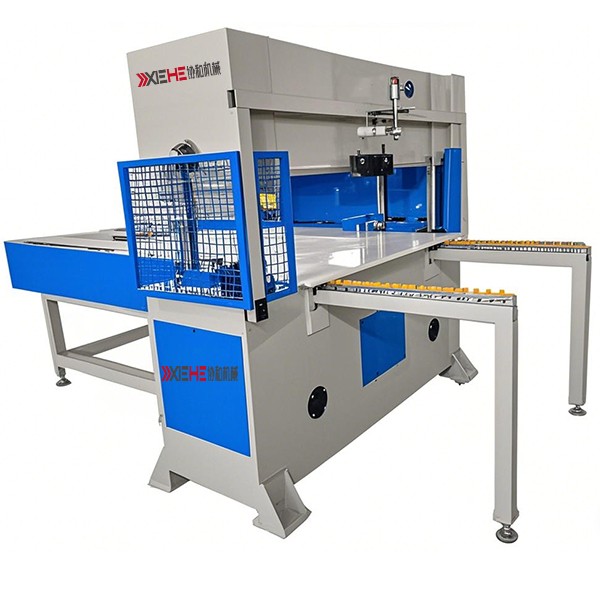

Precision Four Column Cutting Machine

Product Introduction

The precision four column cutting machine is a high-performance industrial grade cutting equipment designed for precise cutting of materials such as leather, rubber, foam, textiles, etc. Adopting a four column hydraulic structure ensures a stable and efficient cutting process, uniform pressure distribution, and a smooth and burr free cut. Equipped with intelligent control system and adjustable stroke function, it adapts to materials of different thicknesses and hardness, significantly improving production efficiency and product consistency. Widely used in shoe manufacturing, automotive interior, packaging industry, and composite material processing field.

Core features:

-Four column hydraulic stable structure : Strong resistance to eccentric load, no deformation during long-term operation

-High precision cutting : error ≤ 0.5mm, supports complex shape molds

-Intelligent human-machine interface: One click setting of pressure, travel, and counting functions

-Security Protection : Infrared Sensing Emergency Stop+Two Hand Operation Guarantee

-Energy saving and durable: Low noise design reduces maintenance costs by 30%

Main technical specifications

1.Punching force: 400-1500KN; (Customizable)

2. Workbench area: 1800x1000 mm; (Customizable)

3. Maximum spacing between upper and lower workbenches: 200 mm;

4. Blanking adjustment range: 5-150 mm;

5. Oil pump motor power: 15KW;

6. System working pressure: ≤ 31.5MPa;

7. Machine noise: ≤ 70dBA;
