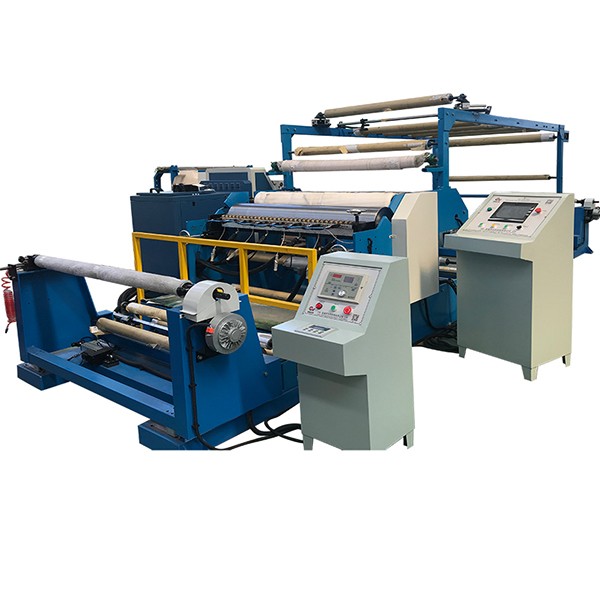

Abrasive paper with PSA Hot Melt Lamination Machine-

• Brief Introduction

Hot melt adhesive coating machine is a solvent-free, water-free, 100% solid meltable polymer. It is solid at room temperature, and it becomes a fluid and viscous liquid when heated and melted to a certain extent. An adhesive, which is applied to a substrate, usually contains a lamination part, a device that can laminate another substrate to a glued substrate.

Xiehe roll laminating machine is designed to laminate various type of materials together through the application of hot melt adhesive.

It is a high-performance machine, suitable for the continuous process of jumbo rolls.

• Main technical parameter：

Max  web width：1650 [mm]

Designed mechanical speed: 1-35  [m/min]

Coating lamination speed: 5-25  [m/min]

Coating liquid:  EVA hot melt

Base material：Sandpaper、velcro, foam, PSA etc soft materials

Coating method：

Max unwinding dia of sandpaper： φ1000 [mm] (inner Dia:3'')

Max unwinding dia of velcro:           φ600 [mm] (inner Dia:3'')  - Can be customized

Max winding diameter：                 φ1000 [mm] (inner Dia:3'')- Can be customized

Voltage：380V/440V±10%，50HZ，three phase- Can be customized

Size  （L×W×H）： 7.6 x 6.3 x 3.2 m

• Options

Printing device

Slitting device
