Xiehe-Coated Abraisve Slitter
Coated Abraisve Slitter is designed to cut flexible materials with a maximum cutting width of 1650 mm.contact:info@abrasives-machinery.com
Brief Introduction

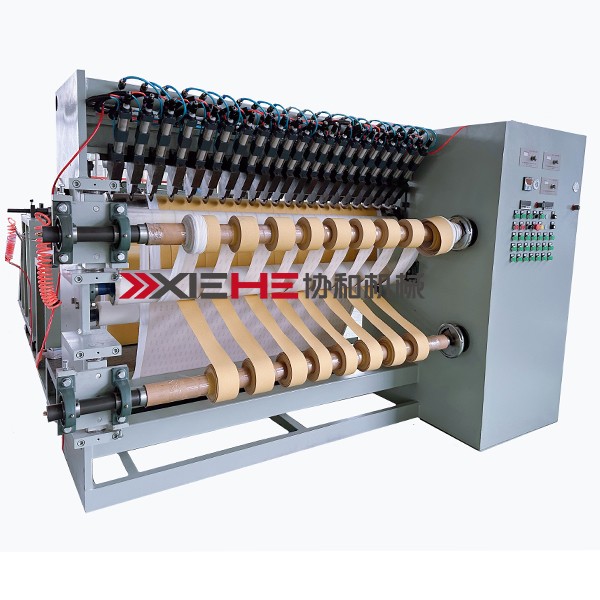

The roll slitter machine is designed to cut flexible materials with a maximum cutting width of 1650 mm.
This wide slitting machine is used in abrasive conversion: flap disc, flap wheel, sanding belt. It can flexibly
cut sanding cloth jumbo rolls into wanted width strips.
Technical data
| Raw materials’ maximum width | 1650mm |
| Maximum unwinding diameter | Φ600mm(or customize) |
| Paper tube diameter | 3 〞(or customize) |
| Minimum slitting width | 140mm(or customize) |
| Maximum winding diameter | Φ600mm(or customize) |
| Mechanical speed | 10-60 M / min |
| Voltage | 380V 50HZ three-phase / (or customize) |
Options
Meter counter with automatic stop
Manual cross cutter
PLC control
